8 input channels, 8bit A/D converter
Connects to Printer port via/pin-pin D25-sub.
Runs on external +12V power.
|
|
| ES-18 Acquisition Board |
|
Analogue input Board. Parallel port (SPP) Nibble mode
8 input channels, 8bit A/D converter Connects to Printer port via/pin-pin D25-sub. Runs on external +12V power. |
|

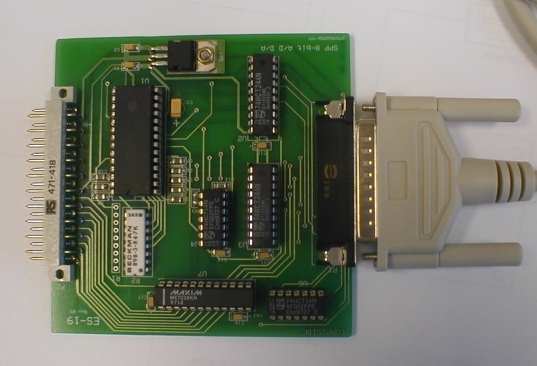

| ES-19 Acquisition Board |
|
Analogue I/O Board. Parallel port (SPP) Nibble mode
8 input channels, 8bit A/D converter 8 output channels, 8bit D/A converter Connects to Printer port via/pin-pin D25-sub. Runs on external +12V power. |
|

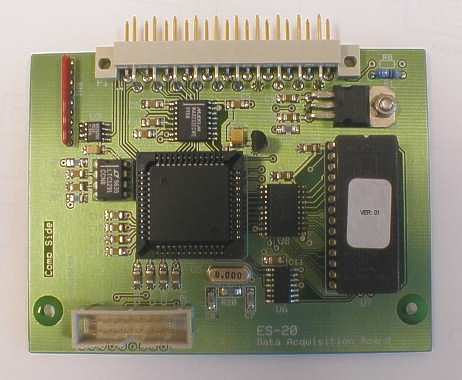

| ES-20 Acquisition Board |
|
Analogue & Digital I/O Board.
Connects to a standard PC serial port. RS-232 interface using Rx Tx, port: 9600,N,8,1 ASCii On board Hi precision voltage reference chip 8 input channels, 0 - 5V 8bit A/D converter 2 input channels, 0 - 5V 12bit A/D converter 3 counter inputs, TTL 5 digital outputs, TTL |
|

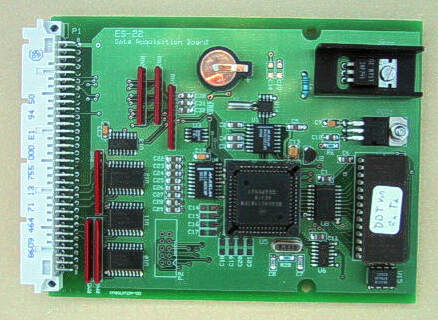

| ES-22 Acquisition Board |
|
Analogue & Digital I/O Board.
Connects to a standard PC serial port. RS-232 interface using Rx Tx, port: 9600,N,8,1 ASCii On board Hi precision voltage reference chip 8 input channels, 0 - 5V 8bit A/D converter 8 input channels, 0 - 5V 12bit A/D converter 3 counter inputs, TTL pulldown 24 digital inputs, TTL pulldown 1 digital output, TTL On board realtime clock reference chip |
